The Hi-Lift® X-TREME is for the serious
Hi-Lift® user, offering the "top of the line" all-cast version (48" or 60" sizes) with special
features that include, charcoal metallic powder-coat finish, gold zinc-coated hardware and
handle, with a special top winch-clamp-spreader attachment.
 SPECIFICATIONS:
 Safety bolt is designed to shear at 7,000 lbs.
4 1/2" lifting nose for positive contact with
load.
Steel bar can be reversed for extra long life.
Low pickup of 4 1/2".
28 square inch base plate.
Quick release pin for easy removal of base
5,000 lbs rated capacity.
(click image for large view) |
. |
. |
| . |
FEATURES:
Charcoal Metallic Powder-Coat Finish provides a truly unique look that separates it from
the standard Hi-Lift.
Gold Zinc-Coat Hardware ensures the greatest rust resistance from extreme use for all the
hardware, the unique winch-clamp-spreader attachment, and the handle.

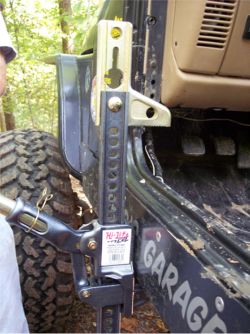

Unique Winch-Clamp-Spreader Attachment
replaces the clamp-clevis of the standard Hi-Lift®. |
. |
. |
| . |
(click image for large view) |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Model
Xtreme H-Lift
Shipping |
. |
48"
$99.95
$25.00 * |
. |
60"
$109.95
$25.00 * |
. |
|
Total |
. |
$124.95 |
. |
$134.95 |
. |
|
* Includes sales tax for shipments within Oklahoma |
. |
Winch-Clamp-Spreader Specs:
Winch, clamp, or spread up to 5,000 lbs.
7/8" shackle holes for easy/secure, non-binding
shackle attachment.
3/8" chain slot for easy/secure winching & quick
slack adjustment. No hook required.
Attachable at any point on the Hi-Lift "I" beam.
Quick tightening wing nut. Cut-out wedge for "gripping" when spreading. |
|
. |
. |
| . |
 |
. |
|
The Original Hi-Lift® Jack
|
The Hi-Lift® Jack is a rugged, highly
versatile jack that puts you in command of situations requiring lifting, pushing, pulling,
winching, and clamping. Although light in weight and easy to maneuver, the Hi-Lift® Jack offers a
rated lifting capacity of 2 1/3 tons.
SPECIFICATIONS:
Approximate weight: 30lbs.
4,660 lbs rated capacity.
Climbing pins of specially processed steel with
125,000 PSI tensile strength and 100,000 PSI yield.
Steel bar is manufactured of specially rolled extra high carbon steel with 80,000 pound minimum
tensile & carbon .69 to .82.
Steel handle of 14 gauge high-yield structural tubing with minimum yield of 55,000 PSI. 1 5/16"
diameter.
(click image for large view) |
. |
. |
| . |
FEATURES:
Every Jack comes complete with an adjustable top clam clevis for use in clamping and winching.
Safety bolt is designed to shear at 7,000 lbs.
For speedy disengaging, lifting unity automatically drops away when load is removed.
4 1/2" long lifting nose for positive contact with load.
Steel bar can be reversed for extra long life.
Low pickup of 4 1/2".
28" square in base plate. |
. |
. |
| . |
| . |
| . |

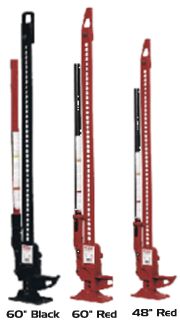

60" Black
Cast & stamped steel construction.
7000lb tested capacity. |
|
. |
| . |
60" Red
All cast construction.
7000lb tested capacity. |
|
. |
| . |
48" Red
All cast construction.
7000lb tested capacity. |
|
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Size
Hi-Lift Jack
Shipping |
. |
60" Black
$74.95
$25.00 * |
. |
60" Red
$84.95
$25.00 * |
. |
48" Red
$79.95
$21.00 * |
. |
|
Total |
. |
$99.95 |
. |
$109.95 |
. |
$100.95 |
. |
|
| . |
* Includes sales tax for shipments within Oklahoma |
|
. |
. |
| . |
(click image for large view)
 Convenient to use, easy to store.
Alleviates jack sinkage on soft ground.
Rugged construction meets Hi-Lift®
 specifications for strength & durability. |
. |
|
Hi-Lift® Jack Off-Road Base
|
|
The Off-Road Base is an authorized Hi-Lift®
Accessory, and can be used with any model of Hi-Lift® Jack. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Off-Road Base
Shipping |
. |
$49.95
$10.00 * |
. |
. |
|
* Includes sales tax for shipments within Oklahoma |
. |
|
|
. |
. |
| . |
(click image for large view)
Mounting brackets are slotted for
adjustment.
Velcro handle strap secures handle to jack.
All mounting hardware and instructions are
included (some drilling required).
A padlock can be placed through a hole
in the carriage bolt.
1/8" steel construction holds up under
the strain of off-road travel. |
. |
The 4xRac is an authorized Hi-Lift®
Accessory, and is designed for serious off-roaders who are looking for an easy, inexpensive way
to stow their Hi-Lift® Jack in a convenient, secure location.
Kit contains 2 mounting brackets, 2 mounting bracket caps, a Velcro strap for securing the
jack handle and all necessary mounting hardware. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
4xRac
Shipping |
. |
$39.95
$10.00 * |
. |
. |
|
* Includes sales tax for shipments within Oklahoma |
. |
|
|
. |
. |
| . |
(click image for large view)
Installation is simple. It can be mounted horizontally or vertically. Your Hi-Lift® Jack is
mounted in the Loc-Rac to deter theft. It also places the Jack in an easy to reach
location. |
. |
|
The Loc-Rac is an authorized Hi-Lift®
Accessory, a convenient mounting and locking device for storage of your Hi-Lift® Jack. Lock included. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Loc-Rac
Shipping |
. |
$34.95
$10.00 * |
. |
. |
|
* Includes sales tax for shipments within Oklahoma |
. |
|
|
. |
. |
|
