Suspension Gear at OKoffroad.com
.

(click image for large view)

Sold in pairs.
Xtreme Duty 1/4" steel - weld-on.
Antiwrap design.
6" long seat with center & 1" offset holes.
Designed for 21/2" wide leaf springs.
Designed for 3" axle tubes.
Easily modified for larger axle tubes.
.

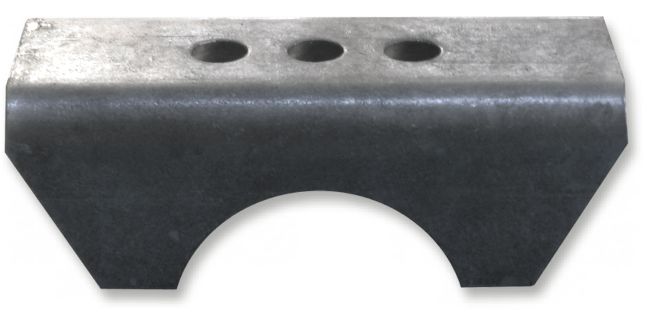

XD Antiwrap Spring Perch

Antiwrap spring perch is designed with a longer seat to minimize spring and axle wrap during heavy loading. This design causes the spring to remain flat and prevent damage. For use with 21/2" wide springs.
.
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY)
XD Antiwrap Spring Perch
Shipping
. $49.95
$15.00
*
.

Total . $64.95 .
.
.
* Shipping rate includes sales tax within Oklahoma .

.
.

(click image for large view)
. .
.

.
. .
.

(click image for large view)

Sold in pairs.
Precision laser-cut.
Xtreme Duty 3/8" plate steel.
Spring center pin holes.
Angled ends for strength.
Fits axle tubes from 23/4" to 31/2".
Slotted holes for various size fitment.
Accepts up to 5/8" U-bolts.
.

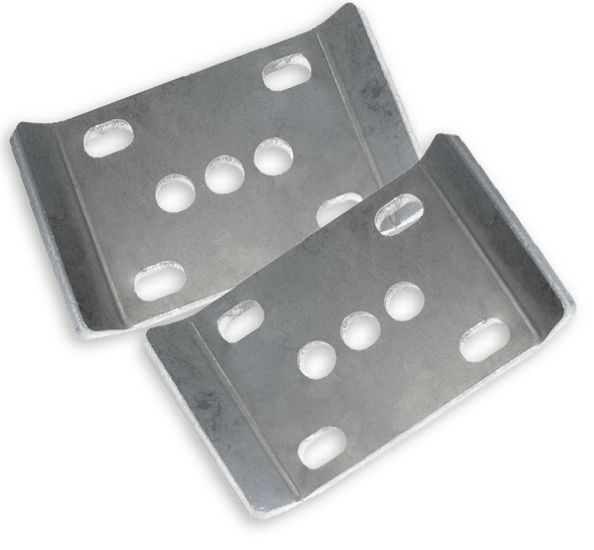

Xtreme Duty Spring plates

These spring plates are made from 3/8" thick plate steel, so they do not bend under heavy loads. Angled ends prevent damage to springs when under extreme flex and can serve as mounting locations for shock mounts. Slotted holes accept U Bolts up to 5/8" in diameter and are placed so that these plates will fit axle tube diameters from 2.75" to 3.5". These plates are designed for 21/2" wide springs.
.
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY)
XD Spring Plates
Shipping
. $44.95
$15.00
*
.

Total . $59.95 .
.
.
* Shipping rate includes sales tax within Oklahoma .

.
.
. .
.

.
. .
.

(click image for large view)

Sold in pairs.
.

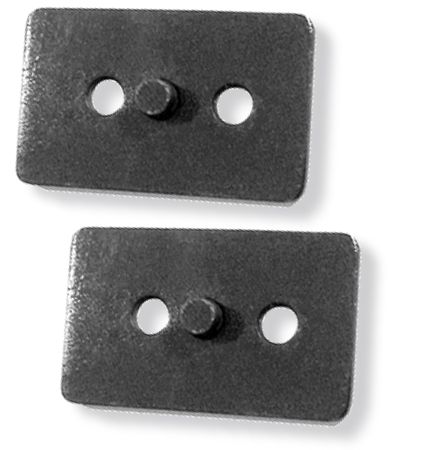

Offset Spring plates

Spring offset plates allow repositioning of axle forward or rearward. Axle can be moved 3/4" or 1" in either direction. Mount the plate into the spring pack. New spring center pins may be required. Plates are 2.5" wide.
.
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY)
Offset Spring Plates
Shipping
. $29.95
$10.00
*
.

Total . $39.95 .
.
.
* Shipping rate includes sales tax within Oklahoma .

. .

.

Spring Hangers

Designed for custom leaf-spring shackle assembly - weld-on spring hangers.
.

XD Limiting Straps

Stock & Custom Length Limiting straps for Extreme suspensions. Available in 5 stock lengths, or custom up to 36".
.

Beefy Shackle Bars

Designed for custom leaf-spring shackle assembly - longer and beefier than stock.
.

.

Axle Shock Mounts

Designed to be used on an axle tube. Accepts 1/2" bolts and shocks with 1.5" wide eyes/bushings.
.

U-Style Shock Mounts

Designed to be used for mounts on flat surfaces. Accepts 1/2" bolts and shocks with 1.5" wide eyes/bushings.
.

Stud Shock Mounts

Designed as an upper shock mount on a crossmember. Can also be used as a weld-on mount for sway bar disconnects on a front axle.
.
. .
.

.
Re-Sellers Welcome
We are exclusive distributors for many of our listed products. We offer volume discounts, or drop-ship set-ups to retailers of 4x4 accessories and recovery gear.


Disclaimer. Please read: The effectiveness of this equipment is directly related to the manner in which it is installed, used (for off-road use only), and/or maintained. Proper installation, use and maintenance is solely the responsibility of the installer/user, and will not be assumed by OKoffroad.com.

. .
