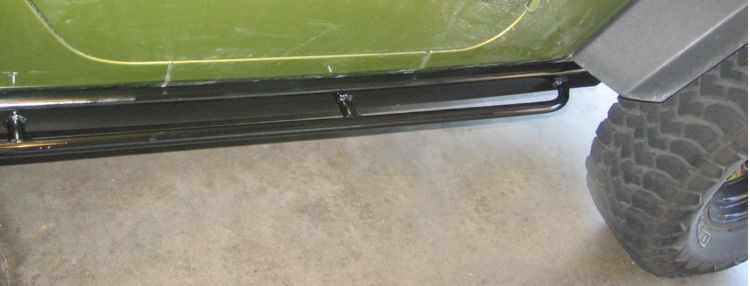

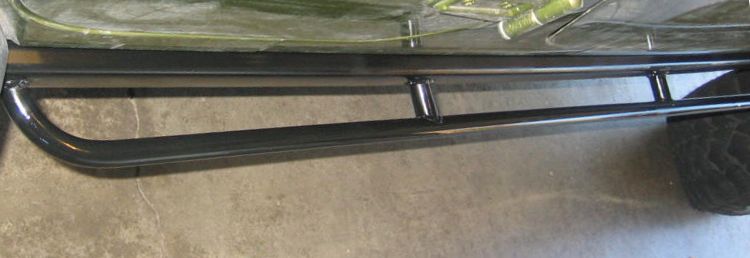

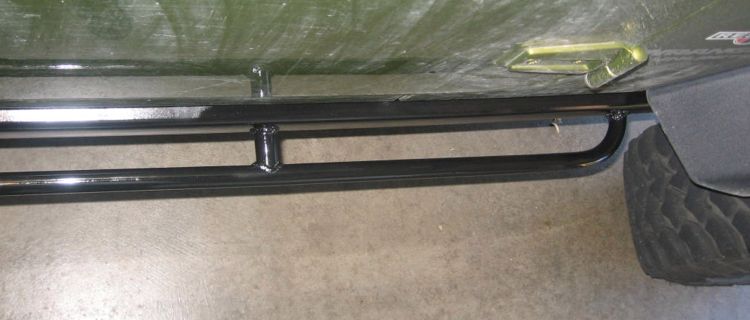

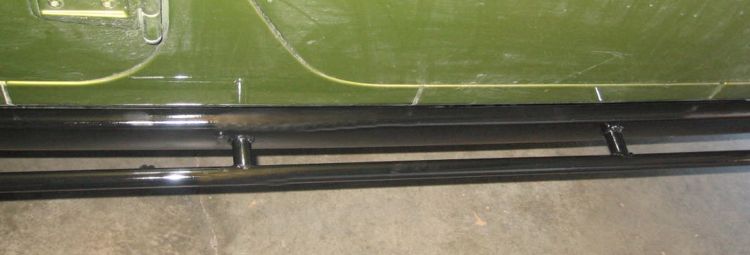

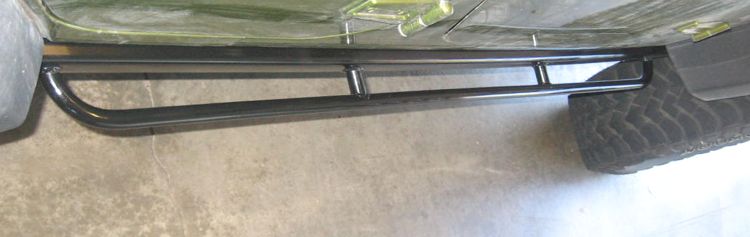

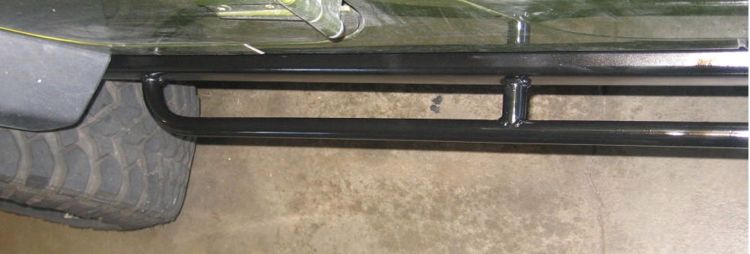

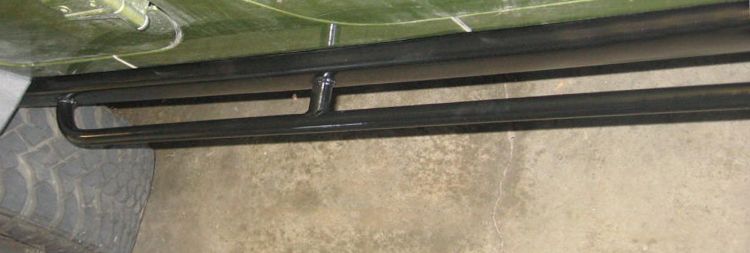

Note:The pictured tree deflectors are
1" in diameter, and are inserted into drilled holes in the front face of the rock sliders. They
stand out 3.5" from the rock sliders. |
. |
|
Weld-on Tree Deflector Kit |
Our weld-on Tree Deflector kit is suitable
for any long or short wheelbase rig with factory or aftermarket square tubing rock sliders. The
kit allows tree deflector widths up to 6 inches from the front wall of the rock slider. Welding
and cutting required.
 Sold in pairs.
Long and short wheelbase applications.

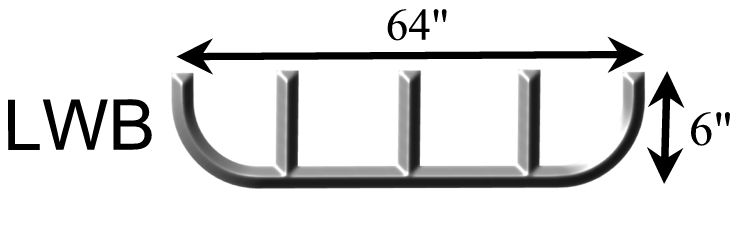

LWB overall length: 64".

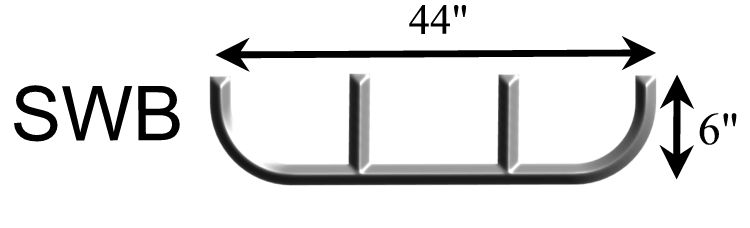

SWB overall length: 44".
Three (3) notched supports per long wheelbase model.
Two (2) notched supports per short wheelbase model.
Material: HREW tubing (Hot Rolled Electric Welded).
Thickness: .120 wall.
Finish: unpainted, ready to weld.
Available in three diameters: 1", 1.5" & 1.75".
Welding required.
U.S. Made.
The tree deflectors are 6" wide to enable them to be inserted through the rock sliders for extra
strength if required.
(click images for large view)
Note: Each SWB kit is shipped in 3 pieces: one outer tube, with 2 supports. Each LWB kit is shipped
in 4 pieces: one outer tube, with 3 supports. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Weld-on Tree Deflectors
Shipping |
. |
Short Wheelbase
$20.00 * |
. |
Long Wheelbase
$25.00 * |
|
* Includes sales tax for shipments within Oklahoma |
. |
|
| .
|
. |
