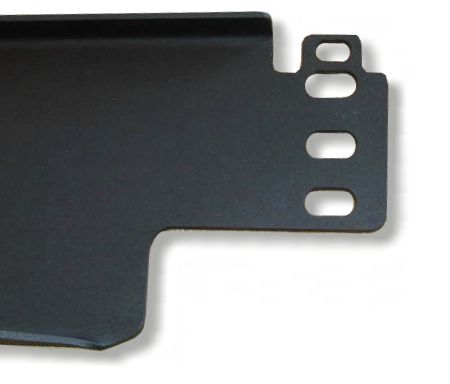

(click image for large view)
 3/16" heavy-duty steel construction.
Ramsey, Milemarker & Warn compatible.
Standard fairlead mounting bolt pattern.
Mounts to factory bumper & frame.
Easy bolt-on installation.
Black powder-coated finish.
|
. |
For anyone wishing to retain their factory
front bumper and still mount a self-recovery winch, this winch mounting plate is a straight
bolt-on for Jeeps, and easily modified for most vehicles.
Bracketry supplied to mount the winch plate. |
. |
| . |
|
U.S. SHIPMENTS (CONTINENTAL U.S. ONLY) |
Winch Mounting Plate
Shipping |
. |
$79.95
$19.00 * |
. |
|
* Includes sales tax for shipments within Oklahoma |
|
|
. |
. |
| . |

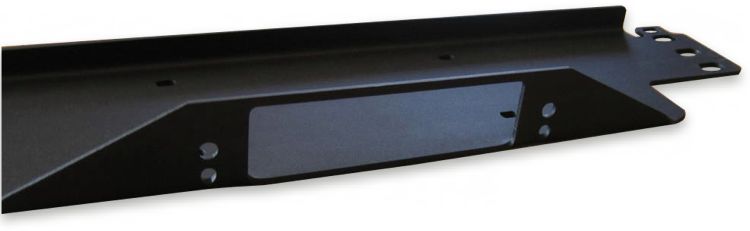

(click image for large view) |
 Detailed specs:
Overall Width: 333/8".
Overall Depth (front to back): 77/8".
Inside Depth (front to back): 71/8".
Front face Width: 223/4".
Standard bolt pattern: 303/4".
1" Elongated mounting holes.
Maximum bolt pattern: 313/8".
Minimum bolt pattern: 301/8".
Failread slot Length: 8".
Failread slot Height: 21/8".
10" x 41/2" winch mounting bolt
pattern.
10" fairlead mounting bolt pattern.
|
. |
. |
| . |
| . |
Viper Winch Series
The 5.5 HP EW Series of Viper recovery winches for heavy-duty off-road recovery needs. |
. |
Ramsey Patriot Series
The Patriot Series, the newest line of quality winches from Ramsey, all come with a powerful
5.5 HP series wound electric motor. |
. |
Ramsey REP Series
The U.S. Made REP Series is the perfect all-round winch on the market today. For light or heavy
duty, the REP Series will meet all your winch needs. |
. |
|
. |
. |
| . |
Disclaimer. Please read:
The effectiveness of this equipment is directly related to the manner in which it is installed,
used, and/or maintained. Proper installation, use and maintenance is solely the responsibility of
the installer/user, and will not be assumed by OKoffroad.com.
|
. |
. |
|
