OKoffroad.com Accessories - Hummer-class Amsteel Blue Winchrope

Recovery Gear at OKoffroad.com

(click image for large view)

Signature OD Green color.

Sized for Hummer and Humvee.

UV protection coated.

Lock-stitched Class II splicing, with heat-shrink.

10' abrasion guard included. The guard is flexible and compact enough to wind in with the rope. Comes right back out when you unspool. Move the guard along the length of the rope to guard against rock outcrops, etc. when winching.

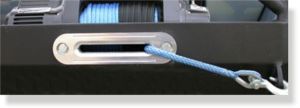

We recommend one of our larger than stock winch hooks (Self-Locking, Mega, or Big Red) and our H1 heavy-duty aluminum Hawse fairlead specifically designed for synthetic winch rope use - See Below.

AmSteel Blue is the latest development of HMPE fiber in a twelve-strand braided rope utilizing Parallay design with proprietary blue urethane coating. Synthetic winch rope was introduced to the off-road vehicle markets in the 1990’s. It has rapidly become a must-have accessory for hard-core rockcrawlers and off-road enthusiasts.

Note: As with cable, we recommend keeping a minimum of 8 wraps of synthetic line on the winch drum at all times.

(click image for large view)

For installation & Tech Info

CLICK HERE

(click image for large view)

H1 Amsteel Blue Winchrope

U.S. Made Amsteel Blue synthetic fiber rope has a higher breaking strength than that of steel cable of the same diameter, but weighs less than 1/6. It won't get all wound-up like cable when unspooled. It can't develop sharp frays, and it doesn't conduct electricity or heat (won't freeze your hands in winter). It won't rust, doesn't kink, doesn't recoil, doesn't stretch, or doesn't store energy. Need we say more!

(click image for large view)

Heavy-duty rope thimble with Class II locking eye splice, and heat-shrink cover.

Note: Our ropes are professionally spliced and crimped.

Extra-large terminal end, with rope taped prior to being crimped into the terminal.

(click image for large view) Note: The terminal end (drum connector) prevents the rope from unraveling. It is not a load-bearing tie-down. The terminal end is professionally glued and crimped, and is designed to withstand a certain amount of pull. Improper installation of the rope, or spooling out to the last layer of drum, causing a full load pull to be exerted on the terminal end, however, will cause the terminal end to release the rope, as it is designed to do. This set-up prevents the winch set screw from pulling out of the drum.

Note: We strongly recommend upgrading to a billet aluminum Hawse fairlead to prevent damage from a scuffed roller fairlead. See fairleads below.

7/16" x 80'
23,925 lb strength

7/16" x 100'
23,925 lb strength

7/16" x 125'
23,925 lb strength

1/2" x 100'
34,000 lb strength

Note: Compare to 7/16" wire cable with 17,600 lb strength, and 1/2" wire cable with 20,600 lb strength.

U.S. SHIPMENTS (CONTINENTAL U.S. ONLY)

Size
Winchrope
Shipping

7/16" x 80'
$239.00
$12.00 *

7/16" x 100'
$279.00
$12.00 *

7/16" x 125'
$339.00
$12.00 *

1/2" x 100'
$399.00
$12.00 *

Total

$251.00

$291.00

$351.00

$411.00

* Includes sales tax for shipments within Oklahoma

Need smaller? Click here for 5/16" & 3/8" Winchrope

Even smaller?
Click here for 3/16" & 1/4" Winchrope

5/16" and 3/8"
4X4 Winchrope

3/16" and 1/4"
ATV/UTV Winchrope

Need a custom length winchrope? E-mail us or call us toll-free 1-800-781-5094
